98 Peek Materials Mini Water Circulation Pump With Strong Self - Priming Ability

Place of Origin CHINA
Brand Name Suofu
Certification EU CE certification, ISO certification and ROHS certification
Model Number NP400,NP600,NP900,NP1200,NP1700
Minimum Order Quantity 1
Price Please contact with manufactures
Packaging Details Please contact with manufactures
Delivery Time Please contact with manufactures
Supply Ability Please contact with manufactures
Product Details
Body Materials SS316/ /Aluminum Alloy /Hast C-276* Wear Plate Ceramic (option*)
Gear& Bearing One-step Injection Moulded , High-quality Andspecial Filled PEEK /ceramics Shaft High-precision Zirconia Ceramic
Magnet Drive Rare-earth Magnet Covered By PPS Plastic O-ring Seal Viton/EPDM/PTFE
High Light

micro circulation pump

,

small recirculating pump

Leave a Message
Product Description

NP98 Low flow rate,High pressure,Few fluctuation,peek materials mini circulation pump miniature water pump

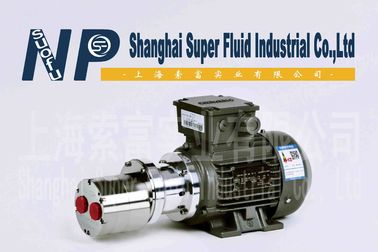

98 Peek Materials Mini Water Circulation Pump With Strong Self - Priming Ability 0

          NP series magnetic drive micro gear pumps can power the fluid circulation and pressurization process inside medical devices, such as hemodialysis machines and microplate washers.

             Competitive advantages:

1. Strong self-priming ability

2. Zero external leakage

3. Operating noise < 45 dB
4. Working pressure, Pmax= 20 bar

5. Integration of motor and drive reduces the length of one unit to only 98mm

6. Building up high inlet vacuum for degassing processes (-0.83 bar)

7. Corrosion resistant

8. Wide allowable liquid temperature range: -50 ℃ ~ 150 ℃

       Our product lines have got CE certification.Our products are applied in widely fields,such as medical equipment, chemical industries, commercial machinery,laboratory analytical instruments, diesel SCR systems, lube systems, spray systems, coolingsystems, fuel cell systems, and lithium battery production lines,ect. The outstanding function of stability, long service life and high pressure performance have been deeply appreciated by our customers.

98 Peek Materials Mini Water Circulation Pump With Strong Self - Priming Ability 1

         NP micro magnetic drive gear pumps use the magnetic field to drive the rotation of gears.The pumps are sealed only with O-rings, and eliminate the risk of dynamic seal failure.Gears (formed through one-step injection moulding) and bearings made of specially filled PEEK materials, high-precision industrial ceramic shafts, and patented gear tooth profile design, all these components ensure the outstanding life expectancy and wear-resistance of our products.

      NP pump is an ideal choice for meeting the demands of low flow rate, high pressure, few fluctuation, corrosion resistance, corrosion resistance, and high temperature resistance.

98 Peek Materials Mini Water Circulation Pump With Strong Self - Priming Ability 298 Peek Materials Mini Water Circulation Pump With Strong Self - Priming Ability 3





Suofu Miniature pump



98 Peek Materials Mini Water Circulation Pump With Strong Self - Priming Ability 4
Nominal displacement 0.2mL/rev~17mL/rev
Inlet-outlet differential pressure 20 bar (transport pure water)
Liquid temperature -50°C to 150°C
Life expectancy longer than 20000 hours in liquids without impurities;100-hour continuous dry running
Inlet vacuum -0.85 Bar (depends on rotational speed)
Electric motor brushed DC/brushless DC/canned magnet brushless DC/ordinary AC/variable frequency AC
Operation noise at the speed of 2000 rpm spur gear pump<55dB / helical gear pump<45dB
Rotational speed 100 ~ 4000 rpm
Thread for connectors

standard type is NPT NPT 1/4’’,1/8’’,NPT 3/8’’ & NPT 3/4” and we offer other options

recommended inlet filter 400 mesh, and in a closed-cycle system the filter should be installed at the pump outlet. Its passable area should be large enough to avoid affecting normal liquid flow



98 Peek Materials Mini Water Circulation Pump With Strong Self - Priming Ability 598 Peek Materials Mini Water Circulation Pump With Strong Self - Priming Ability 698 Peek Materials Mini Water Circulation Pump With Strong Self - Priming Ability 798 Peek Materials Mini Water Circulation Pump With Strong Self - Priming Ability 898 Peek Materials Mini Water Circulation Pump With Strong Self - Priming Ability 9



Suofu   NP  SERIES



98 Peek Materials Mini Water Circulation Pump With Strong Self - Priming Ability 10
SERIES TYPE FLOW
42    Series NP020 0.2ml/rev
NP039 0.39ml/rev
NP060 0.6ml/rev
NP070 0.7ml/rev
51     Series NP100 1ml/rev
NP120 1.2ml/rev
NP170 1.7ml/rev
NP190 1.9ml/rev
60    Series NP240 2.4ml/rev
NP350 3.5ml/rev
98    Series NP400 4ml/rev
NP600 6ml/rev
NP900 9ml/rev
NP1200 12ml/rev
NP1700 17ml/rev



       Our product lines have got EU CE certification, ISO certification and ROHS certification.Our products are applied in widely fields,such as medical equipment, chemical industries, commercial machinery,laboratory analytical instruments, diesel SCR systems, lube systems, spray systems, coolingsystems, fuel cell systems, and lithium battery production lines,ect. The outstanding function of stability,long service life and high pressure performance have been deeply appreciated by our customers.
