60 High Pressure Low Flow Gear Pump Compact Size Long Life Expectancy

Place of Origin CHINA
Brand Name Suofu
Certification EU CE certification, ISO certification and ROHS certification
Model Number NP240,NP350
Minimum Order Quantity 1
Price Please contact with manufactures
Packaging Details Please contact with manufactures
Delivery Time Please contact with manufactures
Supply Ability Please contact with manufactures
Product Details
Body Materials SS316/ /Aluminum Alloy /Hast C-276* Wear Plate Ceramic (option*)
Gear& Bearing One-step Injection Moulded , High-quality Andspecial Filled PEEK /ceramics Shaft High-precision Zirconia Ceramic
Magnet Drive Rare-earth Magnet Covered By PPS Plastic O-ring Seal Viton/EPDM/PTFE
High Light

low flow water pump

,

low flow high pressure water pump

Leave a Message
Product Description

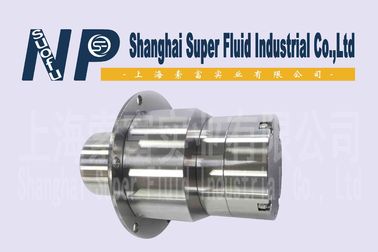

60 High Pressure Low Flow Gear Pump Compact Size Long Life Expectancy 0

        NP series magnetic drive micro gear pumps have wear resistance, high working pressure, smooth pressure, strong self-priming ability, and long life expectancy. These features make them an ideal choice for the processes like disinfectant spraying, humidifying, perfuming, etc., in your factories.

         Our products can fulfill:

1. liquid viscosity: 0.3 ~ 10000 cst
2. working pressure, Pmax: 2.0 MPa/20 bar

3. inlet vacuum: -0.83 bar

4. flow rate range: 25 mL/min ~ 45 L/min

5. convenient flow rate regulation by AC/DC variable frequency motors

     Our product lines have got CE certification.Our products are applied in widely fields,such as medical equipment, chemical industries, commercial machinery,laboratory analytical instruments, diesel SCR systems, lube systems, spray systems, coolingsystems, fuel cell systems, and lithium battery production lines,ect. The outstanding function of stability, long service life and high pressure performance have been deeply appreciated by our customers.

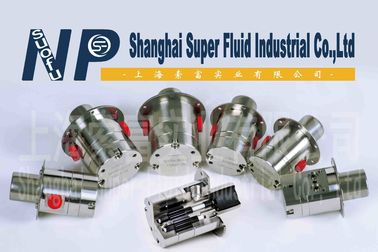

60 High Pressure Low Flow Gear Pump Compact Size Long Life Expectancy 1

         NP micro magnetic drive gear pumps use the magnetic field to drive the rotation of gears.The pumps are sealed only with O-rings, and eliminate the risk of dynamic seal failure.Gears (formed through one-step injection moulding) and bearings made of specially filled PEEK materials, high-precision industrial ceramic shafts, and patented gear tooth profile design, all these components ensure the outstanding life expectancy and wear-resistance of our products.

      NP pump is an ideal choice for meeting the demands of low flow rate, high pressure, few fluctuation, corrosion resistance, corrosion resistance, and high temperature resistance.

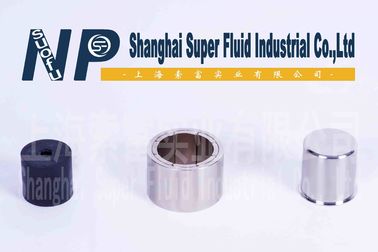

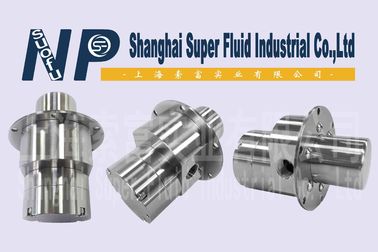

60 High Pressure Low Flow Gear Pump Compact Size Long Life Expectancy 260 High Pressure Low Flow Gear Pump Compact Size Long Life Expectancy 3





Suofu Miniature pump

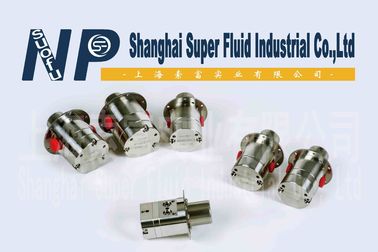

60 High Pressure Low Flow Gear Pump Compact Size Long Life Expectancy 4
Nominal displacement 0.2mL/rev~17mL/rev
Inlet-outlet differential pressure 20 bar (transport pure water)
Liquid temperature -50°C to 150°C
Life expectancy longer than 20000 hours in liquids without impurities;100-hour continuous dry running
Inlet vacuum -0.85 Bar (depends on rotational speed)
Electric motor brushed DC/brushless DC/canned magnet brushless DC/ordinary AC/variable frequency AC
Operation noise at the speed of 2000 rpm spur gear pump<55dB / helical gear pump<45dB
Rotational speed 100 ~ 4000 rpm
Thread for connectors

standard type is NPT NPT 1/4’’,1/8’’,NPT 3/8’’ & NPT 3/4” and we offer other options

recommended inlet filter 400 mesh, and in a closed-cycle system the filter should be installed at the pump outlet. Its passable area should be large enough to avoid affecting normal liquid flow



60 High Pressure Low Flow Gear Pump Compact Size Long Life Expectancy 560 High Pressure Low Flow Gear Pump Compact Size Long Life Expectancy 6



Suofu   NP  SERIES



60 High Pressure Low Flow Gear Pump Compact Size Long Life Expectancy 7
SERIES TYPE FLOW
42    Series NP020 0.2ml/rev
NP039 0.39ml/rev
NP060 0.6ml/rev
NP070 0.7ml/rev
51     Series NP100 1ml/rev
NP120 1.2ml/rev
NP170 1.7ml/rev
NP190 1.9ml/rev
60    Series NP240 2.4ml/rev
NP350 3.5ml/rev
98    Series NP400 4ml/rev
NP600 6ml/rev
NP900 9ml/rev
NP1200 12ml/rev
NP1700 17ml/rev



       Our product lines have got EU CE certification, ISO certification and ROHS certification.Our products are applied in widely fields,such as medical equipment, chemical industries, commercial machinery,laboratory analytical instruments, diesel SCR systems, lube systems, spray systems, coolingsystems, fuel cell systems, and lithium battery production lines,ect. The outstanding function of stability,long service life and high pressure performance have been deeply appreciated by our customers.



60 High Pressure Low Flow Gear Pump Compact Size Long Life Expectancy 8



60 High Pressure Low Flow Gear Pump Compact Size Long Life Expectancy 960 High Pressure Low Flow Gear Pump Compact Size Long Life Expectancy 1060 High Pressure Low Flow Gear Pump Compact Size Long Life Expectancy 1160 High Pressure Low Flow Gear Pump Compact Size Long Life Expectancy 1260 High Pressure Low Flow Gear Pump Compact Size Long Life Expectancy 1360 High Pressure Low Flow Gear Pump Compact Size Long Life Expectancy 14
