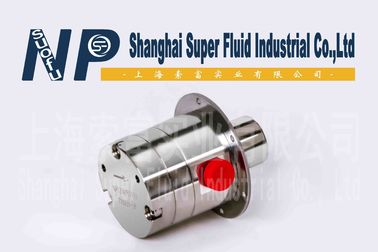

NP magnetic drive micro gear pumps can consistently and steadily transport different fluids and solvents at high pressure.

          Competitive advantages:

1. Compact

2. Low energy consumption and powered only by batteries

3. High discharge pressure (up to 20 bar)

4. Convient pressure and flow rate regulation

5. Durable and reliable

6. Able to run dry continuously

     Our product lines have got CE certification.Our products are applied in widely fields,such as medical equipment, chemical industries, commercial machinery,laboratory analytical instruments, diesel SCR systems, lube systems, spray systems, coolingsystems, fuel cell systems, and lithium battery production lines,ect. The outstanding function of stability, long service life and high pressure performance have been deeply appreciated by our customers.

         NP micro magnetic drive gear pumps use the magnetic field to drive the rotation of gears.The pumps are sealed only with O-rings, and eliminate the risk of dynamic seal failure.Gears (formed through one-step injection moulding) and bearings made of specially filled PEEK materials, high-precision industrial ceramic shafts, and patented gear tooth profile design, all these components ensure the outstanding life expectancy and wear-resistance of our products.

      NP pump is an ideal choice for meeting the demands of low flow rate, high pressure, few fluctuation, corrosion resistance, corrosion resistance, and high temperature resistance.

Suofu Miniature pump
Nominal displacement	0.2mL/rev~17mL/rev
Inlet-outlet differential pressure	20 bar (transport pure water)
Liquid temperature	-50°C to 150°C
Life expectancy	longer than 20000 hours in liquids without impurities;100-hour continuous dry running
Inlet vacuum	-0.85 Bar (depends on rotational speed)
Electric motor	brushed DC/brushless DC/canned magnet brushless DC/ordinary AC/variable frequency AC
Operation noise at the speed of 2000 rpm	spur gear pump<55dB / helical gear pump<45dB
Rotational speed	100 ~ 4000 rpm
Thread for connectors	standard type is NPT NPT 1/4’’,1/8’’,NPT 3/8’’ & NPT 3/4” and we offer other options
recommended inlet filter	400 mesh, and in a closed-cycle system the filter should be installed at the pump outlet. Its passable area should be large enough to avoid affecting normal liquid flow

Suofu   NP  SERIES
SERIES	TYPE	FLOW
42    Series	NP020	0.2ml/rev
	NP039	0.39ml/rev
	NP060	0.6ml/rev
	NP070	0.7ml/rev
51     Series	NP100	1ml/rev
	NP120	1.2ml/rev
	NP170	1.7ml/rev
	NP190	1.9ml/rev
60    Series	NP240	2.4ml/rev
	NP350	3.5ml/rev
98    Series	NP400	4ml/rev
	NP600	6ml/rev
	NP900	9ml/rev
	NP1200	12ml/rev
	NP1700	17ml/rev

       Our product lines have got EU CE certification, ISO certification and ROHS certification.Our products are applied in widely fields,such as medical equipment, chemical industries, commercial machinery,laboratory analytical instruments, diesel SCR systems, lube systems, spray systems, coolingsystems, fuel cell systems, and lithium battery production lines,ect. The outstanding function of stability,long service life and high pressure performance have been deeply appreciated by our customers.
