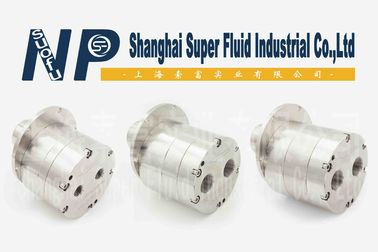

98 PEEK Gear Coating Pump , Low Flow High Pressure Pump For Industrial
Place of Origin | CHINA |
---|---|
Brand Name | Suofu |
Certification | EU CE certification, ISO certification and ROHS certification |
Model Number | NP400,NP600,NP900,NP1200,NP1700 |
Minimum Order Quantity | 1 |
Price | Please contact with manufactures |
Packaging Details | Please contact with manufactures |
Delivery Time | Please contact with manufactures |
Supply Ability | Please contact with manufactures |
Body Materials | SS316/ /Aluminum Alloy /Hast C-276* | Wear Plate | Ceramic (option*) |
---|---|---|---|
Gear& Bearing | One-step Injection Moulded , High-quality Andspecial Filled PEEK /ceramics | Shaft | High-precision Zirconia Ceramic |
Magnet Drive | Rare-earth Magnet Covered By PPS Plastic | O-ring Seal | Viton/EPDM/PTFE |
High Light | mini gear pump,mini dosing pump |
NP series magnetic drive micro gear pumps have strong self-priming capability, stable flow rate, corrosion and wear resistant, wide allowable liquid viscosity range, zero external leakage, accurate and convenient flow rate control, and long life expectancy. These features make them an ideal choice for all types of paint and coating systems.
Our product lines have got CE certification.Our products are applied in widely fields,such as medical equipment, chemical industries, commercial machinery,laboratory analytical instruments, diesel SCR systems, lube systems, spray systems, coolingsystems, fuel cell systems, and lithium battery production lines,ect. The outstanding function of stability, long service life and high pressure performance have been deeply appreciated by our customers.
NP micro magnetic drive gear pumps use the magnetic field to drive the rotation of gears.The pumps are sealed only with O-rings, and eliminate the risk of dynamic seal failure.Gears (formed through one-step injection moulding) and bearings made of specially filled PEEK materials, high-precision industrial ceramic shafts, and patented gear tooth profile design, all these components ensure the outstanding life expectancy and wear-resistance of our products.
NP pump is an ideal choice for meeting the demands of low flow rate, high pressure, few fluctuation, corrosion resistance, corrosion resistance, and high temperature resistance.
Suofu Miniature pump
|
|
Nominal displacement | 0.2mL/rev~17mL/rev |
Inlet-outlet differential pressure | 20 bar (transport pure water) |
Liquid temperature | -50°C to 150°C |
Life expectancy | longer than 20000 hours in liquids without impurities;100-hour continuous dry running |
Inlet vacuum | -0.85 Bar (depends on rotational speed) |
Electric motor | brushed DC/brushless DC/canned magnet brushless DC/ordinary AC/variable frequency AC |
Operation noise at the speed of 2000 rpm | spur gear pump<55dB / helical gear pump<45dB |
Rotational speed | 100 ~ 4000 rpm |
Thread for connectors |
standard type is NPT NPT 1/4’’,1/8’’,NPT 3/8’’ & NPT 3/4” and we offer other options |
recommended inlet filter | 400 mesh, and in a closed-cycle system the filter should be installed at the pump outlet. Its passable area should be large enough to avoid affecting normal liquid flow |

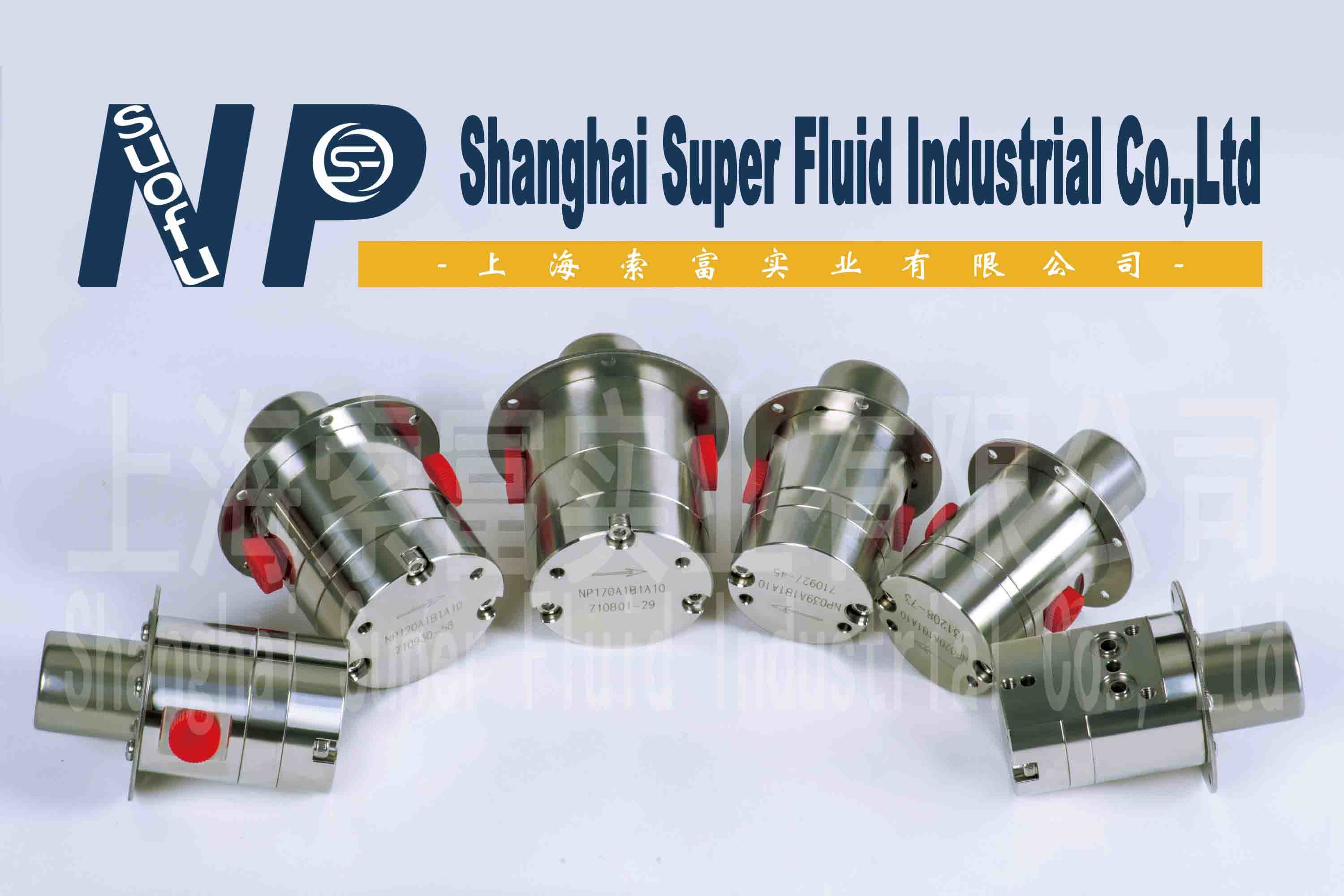

Suofu NP SERIES
|
||
SERIES | TYPE | FLOW |
42 Series | NP020 | 0.2ml/rev |
NP039 | 0.39ml/rev | |
NP060 | 0.6ml/rev | |
NP070 | 0.7ml/rev | |
51 Series | NP100 | 1ml/rev |
NP120 | 1.2ml/rev | |
NP170 | 1.7ml/rev | |
NP190 | 1.9ml/rev | |
60 Series | NP240 | 2.4ml/rev |
NP350 | 3.5ml/rev | |
98 Series | NP400 | 4ml/rev |
NP600 | 6ml/rev | |
NP900 | 9ml/rev | |
NP1200 | 12ml/rev | |
NP1700 | 17ml/rev |
Our product lines have got EU CE certification, ISO certification and ROHS certification.Our products are applied in widely fields,such as medical equipment, chemical industries, commercial machinery,laboratory analytical instruments, diesel SCR systems, lube systems, spray systems, coolingsystems, fuel cell systems, and lithium battery production lines,ect. The outstanding function of stability,long service life and high pressure performance have been deeply appreciated by our customers.
